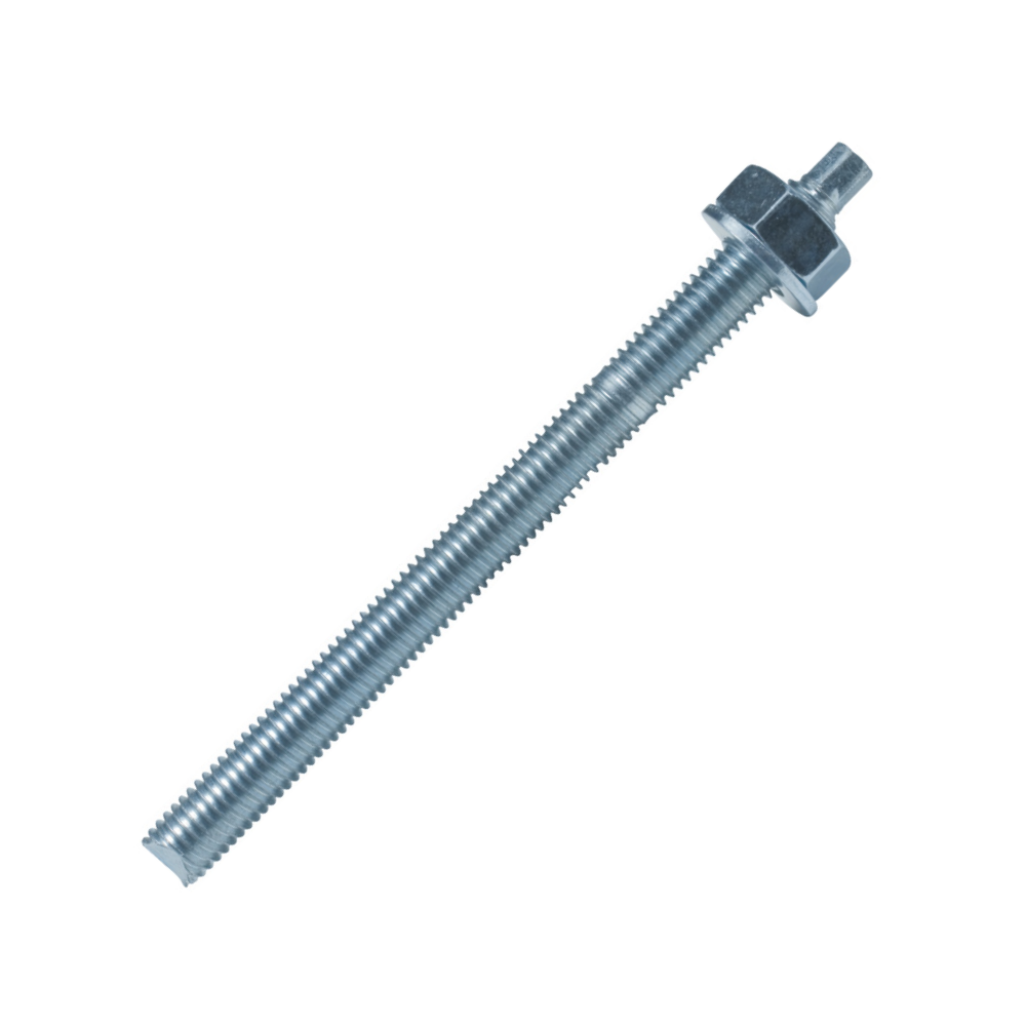

Fischer FTR Resin Studs – Zinc Plated – M20 x 260mm

CODE: 531579

Fischer FTR Resin Studs – Zinc Plated – M20 x 260mm

(10 per pack)

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the... Read more

Only 4 in stock

£29.95

(10 per pack)

Free delivery on orders over £60

Trade prices and bulk discounts

Product Description

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the application with the pre-portioned resin capsule is particularly cost-effective. The hot-dip galvanised and zinc-plated steel threaded rods enable extremely diverse applications. The system is particularly suitable for cost-effective fixations indoors where no approval is relevant. The FTR is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated.

Applications:

Anchorings with resin capsules without approval
Anchorings with injection mortars without approval

Building materials:

Concrete
Natural stone with dense structure

Technical Specification

Diameter	M20
Length	260mm
Drill Hole	24mm
Finish	Zinc Plated
Box Qty	10
Steel Grade	5.8

The fischer threaded rod FTR is a cost-effective system component without approval for the fischer resin capsules RSB and RM II and for fischer injection mortars. For single fixations, the application with the pre-portioned resin capsule is particularly cost-effective. The hot-dip galvanised and zinc-plated steel threaded rods enable extremely diverse applications. The system is particularly suitable for cost-effective fixations indoors where no approval is relevant. The FTR is set with the bonded anchor setting tool and a hammer drill using rotating and hitting motions. During the resin capsule setting process, the capsules are destroyed by the characteristic oblique edge and are mixed, and the mortar is activated.

Applications:

Anchorings with resin capsules without approval
Anchorings with injection mortars without approval

Building materials:

Concrete
Natural stone with dense structure

Diameter	M20
Length	260mm
Drill Hole	24mm
Finish	Zinc Plated
Box Qty	10
Steel Grade	5.8
