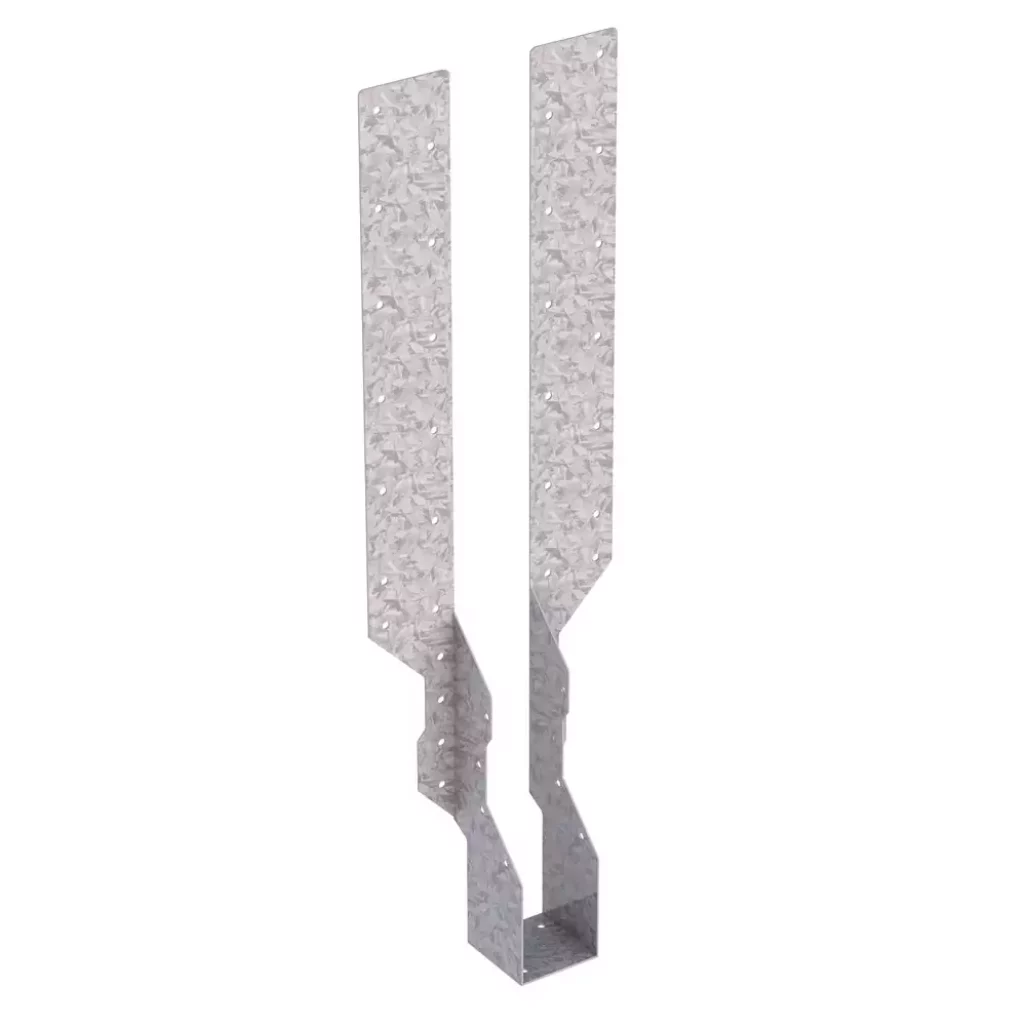

Shop the BPC Timber to Timber Joist Hanger 100 x 460mm Long Leg. Ideal for loft conversion applications.

These BPC joist hangers are manufactured from 1.2mm (B460) and 1.5mm (B610) thick pre-galvanised steel. The B460 and B610 joist hangers offer 460mm and 610mm long legs, suitable for I-Beam applications. They can be either face fixed or wrapped over supporting joists.

For loft conversion applications where the joist hanger extends below the supporting beam, a maximum drop of 75mm is recommended. The design of these BPC long leg joist hangers features a location tab on the hanger base. Designed to allow quick and accurate alignment of the hanger.

Produced from galvanised steel to BS EN 10346:2009 DX51D + G275 as standard, or stainless steel available to order. Galvanised joist hangers must be fixed using 30 x 3.75mm sheradised square twisted nails in all pre-punched holes.

BPC Timber to Timber Hanger Specifications:

• • Width: 100mm
  • Height: 460mm
  • Nail Holes: 44

Long Leg Joist Hanger Installation Details

• • Leg length can be adjusted by wrapping over the supporting joist to suit joist height
  • Suitable for face fixing
  • Use 30×3.75mm sherardized square twist nails in all pre-punched holes

Technical Data Sheet
